MICRONTA DELUXE METAL DETECTOR
The secret to this metal Detector working
very well is the construction of the search coil. It has 2 windings and
one of the windings has a number of tappings. I do not have details of

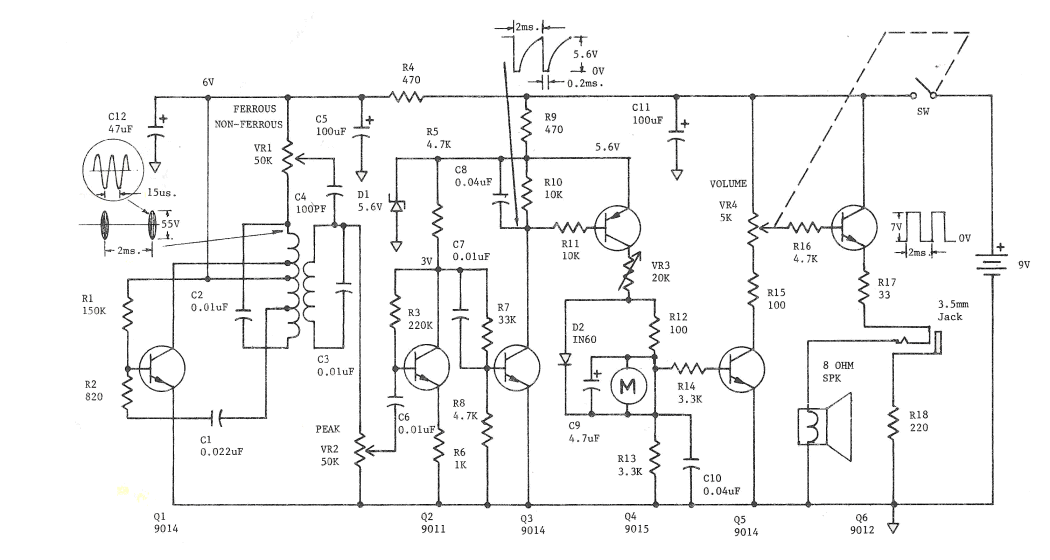

this and until then, the circuit is just for viewing.
