Complete 8x8 Module

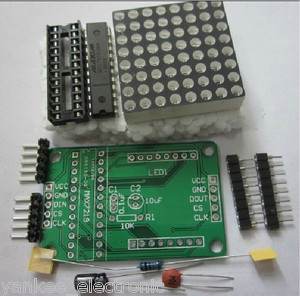

Kit of parts for 8x8 Module

Fitting the parts under the 8x8 Display

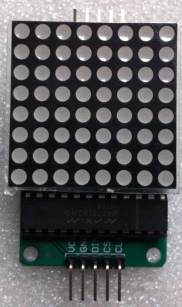

Complete 8x8 Module

Note: Some modules have Clk as the end pin and some have CS as the end pin. Just swap the jumper leads as necessary. Both modules are the same.

Specifications:
Operating voltage: 5v.
Module size: 5 cm long x 3.2 cm wide x 1.5 cm high
Input and output pins support multiple modules in cascade

Kit:
1x PC board
2 x 5 pin bent pin single row
1 x 24 pin IC socket
1 x MAX7219 chip
1 x 10uF electrolytic capacitor
1 x 0.1uF ceramic capacitor
1 x 10k resistor
2 x Block 2x 8 pin round hole (pitch 2.54mm) (called Machine Pins)
1 x 3mm 8 x 8 common cathode red  display


You can buy this kit for about $3.50 post-free

See 8x8 Running Display project
