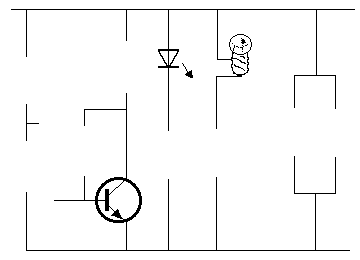

Follow these instructions to fit the resistors to the circuit:
1. 470R current-limiting resistor for the LED
2. 10k collector load resistor
3. 1R current limiting resistor for globe
4. 1M base-bias resistor
5. 100k and 4k7 voltage divider resistors with 100k at top.
6. Two 22k resistors in parallel across power rails.
