This project is an extension of a number of musical projects (Happy Birthday and It's a Small World) and puts 11 melodies into a single design.
It's called EVOLUTION.
From the previous projects we learnt a lot about producing a tune.
The first thing we learnt: it takes a lot of memory.
Each note needs one, two, or even three bytes and this severely limits the length of the tune, as the PIC12F629 has a maximum of 256 bytes for a table and this can only be placed in the first page of memory (the chip does not have the facility to access a table in any other part of memory).
We had to re-design the program so all of the 1024 locations of program-space could be used.
This was done by omitting tables and using the program-space for the data-bytes.
We reduced the data-requirement further by requiring only a single byte to produce the length of the HIGH. The length of the LOW was obviously the same duration.
But now we had a problem.
To produce a note of say 300mS, we had to supply data for the number of cycles. Obviously a high frequency needs more cycles for 300mS, than a low-frequency note.
The answer was to complement the data-bye.
This produced a result very near to 300mS.
The only other thing we had to produce was a note of a suitable length.
This was done by shifting the file right (rrf) to get a value of 50% and adding it to the original value, plus performing other operations to generate the correct length.
This has changed the capacity of the project from 2 tunes to 11, with NO bytes to spare. You cannot use location 3FF for your program as it is used by the micro to store the oscillator value.
We have also included a button to increment through the tunes.
When the project is first turned on, it will play each tune twice. If the switch is pressed, the project will go to the first tune and it will be repeated. If it is pressed again, the second tune will be selected and repeated. See below for more details on this.
The melodies are recognisable but some of the notes are very hard to reproduce in monotone and we have left it up to an aspiring musical person to alter the tones to create an improvement.

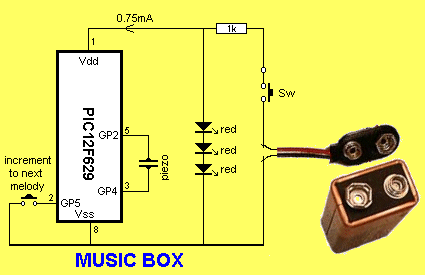

Music Box project with battery snap and 9v battery
The 3 red LEDs regulate the supply to 5v

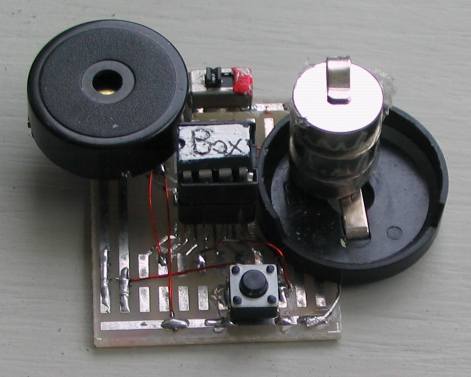

Music Box Project on a prototype PC board

Here is the Music Box added to a Fox-Hunt transmitter by Bjorn Dinse PA4BWD of the Netherlands email: bwewdinse@quicknet.nl

THE CIRCUIT
The circuit uses just a few components on a small prototype PC board. It's easy to construct and ideal for a beginner. It's just a PIC chip, a piezo diaphragm and a switch. You can put it together in a few minutes on a prototype board and download the program from the website.
The pull-up resistor for the switch is inside the chip and this saves one component. We have not placed a 100n across the chip and this is another component saved. The circuit takes less than 1mA and everything else is inside the chip via a program.
The photo shows the prototype.
If you want to buy a kits, there are two versions:
Version 1 comes as a piece of matrix board consisting of solder lands. After placing and soldering the components to the lands, they are joined with fine tinned copper wire to represent the tracks of a printed circuit board.
Version 2 has a PC board and a battery snap for a 9v battery. Three LEDs on the board regulate the voltage to 5v and also act as an "ON" indicator.
Music Box has a memory feature. Any of the tunes can be selected and when the project is turned on again, the selected melody will repeat.
Simply increment through the melodies via the button and turn the project off. Turn the project on to hear the selected melody.
To erase the selection, push the button when the project is off and turn it on. Release the button immediately and the program will start at the first melody and play each twice.
This feature uses the EEPROM and the program below shows exactly how to use these instructions to perform read and write operations.
When creating your own program, these instructions should always be copied and pasted to prevent a mistake.
The full 1024 program locations have been used in this project plus the first location in EEPROM.

PRODUCING A TONE
Producing a tone is very easy. All you have to do is make an output go HIGH then LOW at a controlled rate.
The output goes HIGH and stays HIGH for a certain number of microseconds then goes LOW and stays LOW for the same time. If the HIGH and LOW times are not the same, the tone is not very "clean" and does not have a "ring" about it.
In our case, we have connected the piezo diaphragm to two outputs to increase the volume.
When one output goes HIGH the other goes LOW and vise versa. This causes the piezo to see an increased voltage because the piezo is actually a capacitor of about 22n and when it gets a voltage on one direction, it charges to a voltage equal to the applied voltage.
To make the discussion easy to understand, let's say one lead is fixed at 0v, and the other lead is now supplied with a reverse voltage. The potential of the other lead will change from say a positive voltage to a negative voltage. This is a swing of twice the value of the supply and the additional voltage produces a louder output.

THE PROGRAM
The program is large because each note in a melody requires two bytes. The first instruction loads w with a value and the second sends the micro to the "oscillator" sub-routine.
If a table was used, it would require only one byte, but a table in a PIC12F629 can only occupy the first 256 bytes of the program-space and we need 4 times this length.
The instructions for producing a tone are very simple.
Turn ON an output and create a delay. Turn OFF the output and create the same delay.
When a switch is introduced to a program, we need to be able to detect it very quickly and the only place is to look is within the tone routine.
Next we had to analyse the frequency of the notes and work out the number of microseconds for the HIGH and LOW for each note. This has already been mentioned above and everything is straight-forward until the "Memory" section is created.
This involves using the EEPROM. This is a separate section within the microcontroller consisting of 128 locations that hold information and retain it after power is removed. The program memory consists of 1024 locations that cannot be altered after the chip is "burnt." The chip also has 64 locations called files or registers that can be altered during the running of the program, but lose memory when power is removed. These are the three types of memory.
The first EEPROM location is loaded with 00 when the chip is burnt and this location is looked at to see if the program goes to a requested melody or if the 11 tunes are played in sequence.
If the button is pressed, the current melody number is stored in EEPROM so that if the project is turned off, it will return to the selected tune, when turned on.
Although these EEPROM routines are simple, they must be copied from data sheets to be sure the instructions are correct.
We have used only easy-to-understand instructions for all the other subroutines and once this is done, the program is complete.

Note	Frequency (Hz)
C₃	130.81
C^#₃/D^b₃	138.59
D₃	146.83
D^#₃/E^b₃	155.56
E₃	164.81
F₃	174.61
F^#₃/G^b₃	185.00
G₃	196.00
G^#₃/A^b₃	207.65
A₃	220.00
A^#₃/B^b₃	233.08
B₃	246.94
C₄	261.63
C^#₄/D^b₄	277.18
D₄	293.66
D^#₄/E^b₄	311.13
E₄	329.63
F₄	349.23
F^#₄/G^b₄	369.99
G₄	392.00
G^#₄/A^b₄	415.30
A₄	440.00
A^#₄/B^b₄	466.16
B₄	493.88
C₅	523.25
C^#₅/D^b₅	554.37
D₅	587.33
D^#₅/E^b₅	622.25
E₅	659.26
F₅	698.46
F^#₅/G^b₅	739.99
G₅	783.99
G^#₅/A^b₅	830.61
A₅	880.00
A^#₅/B^b₅	932.33
B₅	987.77
C₆	1046.50

The frequency for each note
C₄ = middle C

Here are the files:
MusicBox.asm
MusicBox.hex

You must use the .hex file to "burn" the chip or the .asm file (if you want to modify the program) as these are laid out so the compiler and programmer can understand the data.
The following program is just for viewing and includes only the first melody.

;************************************************************
;MUSIC BOX TUNES                                            *
;  3-6-2010                                                 *
;Multi tune Music Box without tables - uses whole of memory!*
;Press Sw to increment to next tune                         *
;************************************************************
;
;       --+------------ +5v
;	  |                  |  |
;    +--- | -----------------|[]|----+
;    |    |Vdd ---v---       |  |    |
;    |    +---|1   Gnd|      piezo   |
;    |        |       |              |
;    |  +-----|GP5 GP0|              |
;    |  |     |       |              |
;    +--------|GP4 GP1|              |
;       |     |       |              |
;       |     |GP3 GP2|--------------+
;       |      -------
;       o     PIC12F629
;  Sw    /
;       /
;      |
;     -+------------- 0v

	list	p=12F629
	radix	dec
	include	"p12f629.inc"

	errorlevel	-302	; Don't complain about BANK 1 Registers

	__CONFIG	_MCLRE_OFF & _CP_OFF
                     & _WDT_OFF & _INTRC_OSC_NOCLKOUT  ;Internal osc.


;========================
;
;    Equates
;
;========================

note	equ	21h ;value of HIGH and LOW for note
gap	equ	22h ;gap between notes - uses delay "gap_1"
loops	equ	23h ;loops of HIGH/LOW for 250mS or other duration
temp1	equ	24h ;temp file for note
melody	equ	25h ;counter for melody for switch
D1	equ	26h ;used in 250mS delay
D2	equ	27h ;used in 250mS delay

gapDel	equ	29h ;used in gap delay
tempA	equ	2Ah ;used in gap delay


;****************************************************************
;Beginning of program
;****************************************************************
		org		0x00
SetUp	bsf		status, rp0 	;Bank 1
       	movlw	b'00101011'		;Set TRIS
	movwf	TRISIO	   	    ;GP2,4 outputs	GP5 input
	bcf		option_reg,7	;pull-ups enabled
	bcf		status, rp0		;bank 0
	movlw   07h         	;turn off Comparator
        movwf   CMCON       	;must be placed in bank 0
        clrf	melody       	;jump value for melody table
        btfsc	gpio,5
	goto 	readEEPROM	;read EEPROM at start-up
	movlw	00	;If switch pressed at turn-on; clear EEPROM
	call	write
	goto	SetUp

;********************
;* Delays 	    *
;********************


	;gap_1 produces the gap between notes each unit is 1mS

gap1	movlw	.30
	movwf	gapDel
	nop
	decfsz	tempA,1
	goto	$-2
	decfsz	gapDel,1 ;produces loops
	goto	$-4
	retlw	00

	;extra pause between notes

pause	movlw	.60
	movwf	D2
	nop
	decfsz	D1,1
	goto	$-2
	decfsz	D2,1
	goto	$-4
	retlw	00


	;250mS second delay

_250mS	nop
	goto	$+1
	decfsz 	D1,1
	goto 	_250mS
	decfsz 	D2,1
	goto 	_250mS
	retlw 	00

_1Sec	call	_250mS
	call	_250mS
_500mS	call	_250mS
	call	_250mS
	retlw 	00


;************************
;* Subroutines		*
;************************

	;produces note length

length1	movwf	temp1	;put note length HIGH into "temp1"
	movwf	loops	;create number of loops to produce .25sec
	comf	loops,f	;complement note value to get loops value
	clrc		;clear carry before shifting
	rrf	loops,f	;halve the value of loops
	clrc
	rrf	loops,w	;halve the value of loops again and put into w
	addwf	loops,w   ;to get 0.75 of original
len1_a	movf	temp1,w
	movwf	note
	bsf	gpio,2
	bcf	gpio,4
	goto	$+1
	goto	$+1
	goto	$+1
	nop
	decfsz	note,1
	goto	$-5
	movf	temp1,w
	movwf	note
	bcf	gpio,2
	bsf	gpio,4
	goto	$+1
	btfss	gpio,5
	goto	switch
	goto	$+1
	nop
	decfsz	note,1
	goto	$-6
	decfsz	loops,f
	goto	len1_a
	call	gap1	;gap between notes
	retlw	00

	;produces note length



length2	movwf	temp1	;put note length HIGH into "temp1"
	movwf	loops	;create number of loops to produce .25sec
	comf	loops,f	;complement note value to get loops value
	goto	len1_a



	;produces note length

lengthX	movwf	temp1	;put note length HIGH into "temp1"
	movlw	60h
	movwf	loops	;
	goto	len1_a

	;produces long note length  for Happy Birthday


length2X
	movwf	temp1	;put note length HIGH into "temp1"
	movlw	0FFh
	movwf	loops	;
	goto	len1_a

	;read melody number from EEPROM at turn-on

readEEPROM
	bsf	status,rp0
	clrf	EEADR		;to read first location in EEPROM !!!
	bsf	EECON1,0  ;start EEPROM read operation - result in EEDATA
	movf	EEDATA,w	;move read data into w
	bcf	status,rp0
	movwf	melody     	;jump value for melody table
	movlw	00
	xorwf	melody,w
	btfss	status,z
	goto	sw_M
	goto	Main


switch	call	_500mS
	incf	melody,f
	incf	melody,f	;jump 2 bytes at a time on table
	movf	melody,w
	call	write		;store melody value in EEPROM
sw_M	movf	melody,w
	addwf	02,1		;Add W to the Program Counter for jump
	call	M1
	goto	$-1
	call	M2
	goto	$-1
	call	M3
	goto	$-1
	call	M4
	goto	$-1
	call	M5
	goto	$-1
	call	M6
	goto	$-1
	call	M7
	goto	$-1
	call	M8
	goto	$-1
	call	M9
	goto	$-1
	call	M10
	goto	$-1
	call	M11
	goto	$-1
	nop
	btfss	gpio,5
	goto	$-1
	call	_250mS
	clrf	melody
	goto	Main

write	bsf	status,rp0	;select bank1
	clrf	eeadr		;to load into first location
	movwf	eedata		;w will have melody value
	bsf	eecon1,wren	;enable write
	movlw	55h 		;unlock codes
	movwf	eecon2
	movlw	0aah
	movwf	eecon2
	bsf	eecon1,wr	;write begins
	bcf	status,rp0	;select bank0
writeA	btfss	pir1,eeif	;wait for write to complete
	goto	writeA
	bcf	pir1,eeif
	bsf	status,rp0	;select bank1
	bcf	eecon1,wren	;disable other writes
	bcf	status,rp0	;select bank0
	retlw	00


;************************
;*Melodies		*
;************************

	;It's A Small World

M1	movlw	.151		;It's
	call 	length1
	movlw	.142		;a
	call	length1
	movlw	.128		;world
	call 	length2
	movlw	.75		;of
	call	length2
	movlw	.95		;laugh-
	call 	length2
	movlw	.84		;-ter
	call	length1
	movlw	.95		;a
	call 	length1
	movlw	.95		;world
	call	length2
	movlw	.102		;of
	call 	length2
	movlw	.102		;tears
	call	length2
	movlw	.172		;It's
	call 	length1
	movlw	.151		;a
	call	length1
	movlw	.142		;world
	call 	length2
	movlw	.84		;of
	call	length2
	movlw	.102		;hopes
	call 	length2
	movlw	.95		;and
	call	length1
	movlw	.102		;a
	call	length1
	movlw	.113		;world
	call 	length2
	movlw	.128		;of
	call	length2
	movlw	.128		;fears
	call	length2
	movlw	.151		;There's
	call 	length1
	movlw	.142		;so
	call	length1
	movlw	.128		;much
	call	length2
	movlw	.95		;that
	call 	length1
	movlw	.84		;we
	call	length1
	movlw	.75		;share
	call	length2
	movlw	.84		;that
	call 	length1
	movlw	.95		;it's
	call	length1
	movlw	.113		;time
	call	length2
	movlw	.84		;we're
	call 	length1
	movlw	.75		;a
	call	length1
	movlw	.71		;ware
	call	length2
	call	pause
	movlw	.75		;It's
	call 	length1
	movlw	.102		;a
	call	length1
	movlw	.113		;small
	call	length2
	movlw	.71		;world
	call 	length2
	movlw	.75		;aft-
	call	length2
	movlw	.84		;-ter
	call 	length1
	movlw	.95		;all
	call	length2
	call	_250mS
	movlw	.95		;It's
	call 	length2
	movlw	.95		;a
	call	length1
	movlw	.75		;small
	call	length2
	movlw	.95		;world
	call 	length2
	movlw	.84		;aft-
	call	length2
	movlw	.84		;-ter
	call 	length1
	movlw	.84		;all
	call	length2
	call	_250mS
	movlw	.84		;It's
	call 	length2
	movlw	.84		;a
	call	length1
	movlw	.71		;small
	call	length2
	movlw	.84		;world
	call 	length2
	movlw	.75		;aft-
	call	length2
	movlw	.75		;-ter
	call 	length1
	movlw	.75		;all
	call	length2
	call	_250mS
	movlw	.75		;It's
	call 	length2
	movlw	.75		;a
	call	length1
	movlw	.64		;small
	call	length2
	movlw	.71		;world
	call 	length2
	movlw	.71		;aft-
	call	length2
	movlw	.71		;-ter
	call 	length1
	movlw	.71		;all
	call	length2
	movlw	.75		;It's
	call 	length1
	movlw	.84		;a
	call	length1
	movlw	.128		;small
	call	length2
	movlw	.102		;small
	call	length2
	movlw	.95		;world
	call 	length2
	call	_1Sec
	retlw	00



;************************
;*Main			*
;************************


Main	call	M1
	call	M1
	call	M2
	call	M2
	call	M3
	call	M3
	call	M4
	call	M4
	call	M5
	call	M5
	call	M6
	call	M6
	call	M7
	call	M7
	call	M8
	call	M8
	call	M9
	call	M9
	call	M10
	call	M10
	call	M11
	call	M11
	goto	SetUp


;************************************
;*EEPROM     			    *
;************************************

	org		2100h

	de		00h,

	END

GOING FURTHER
This project provides you with the tools to create your own tune or download one of the "old favourites" and annoy everyone in the household with its incessant playing. The program-space is completely full so you will have to delete one of the melodies to create space for your new tune.

3/6/2010
