Kits

Here is the list of Kits.
We will be adding kits on a regular basis, so keep coming back for new kits.
These kits come from 3 different suppliers. This gives you the biggest range and the best price.
Some kits are POSTAGE FREE.
Some kits have postage as an additional cost. The cost of postage applies to: UP TO 3 KITS so send an email and we will work out the final cost for you.

Some kits accept PayPal.

CD and Bag of Components
CD of the whole Talking Electronics website (180MB) plus a small bag of components including surface mount IC's.

Price $10.00 Free Shipping
Log in to your PayPal account and send a payment to:
talking@tpg.com.au for $10.00 AUD

FLIP FLOP
This simple circuit will alternately flash two high-bright red LEDs. It will work on a supply of 3v to 9v.

Price $2.00 Free Shipping

See circuit and how it works

See circuit and how it works - This circuit is an exact copy of Talking Electronics LED Dice and the discussion applies to both versions.

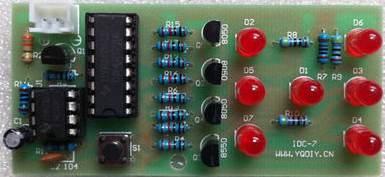

LED Dice
Press the button and the LEDs will flash and stop on a number 1 to 6, just like the sides of a dice. It will work on a supply of 5v to 9v.

Price $4.50 Free Shipping

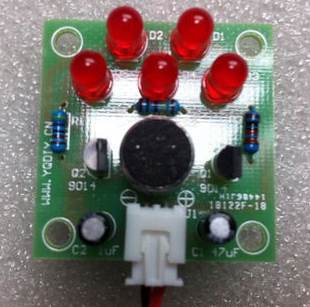

LED Voice Flasher
This simple circuit will flash a row of high-bright red LEDs according to the sound received by the microphone. It will work on a supply of 3v to 9v. This is commonly called MUSIC COLOUR.

Price $3.50 Free Shipping

See circuit and how it works

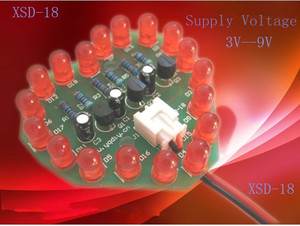

Heart Flasher
This simple circuit will alternately flash 3 sets of coloured LEDs via R-C timing components. It will work on a supply of 3v to 9v. It can be used as a gift or bicycle flasher.

Price $4.50 Free Shipping

See circuit and how it works

Wheel Of Fortune
This simple circuit will alternately flash 10 LEDs arranged in a circle when the switch is pressed. The LEDs will gradually slow down and will stop on your luck number.

Price $5.00
Free Shipping

See circuit and how it works

Roulette
This project has 38 LEDs. The illumination will "run around the LEDs" and gradually slow down to stop on a number. The project is just like a Casino Roulette wheel.

Price $13.00
$9.00 Shipping

Roulette.html

Burglar Alarm
This circuit turns on when the loop connected to J1 is broken. The output will produce 4 different alarm sounds, depending on the placement of jumpers on the PC board.

Price $5.00
Free Shipping

See circuit and how it works

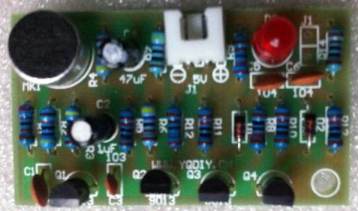

Clap Switch
This circuit turns ON when it detects a sound and turns OFF when it detects another sound.

Price $4.00
Free Shipping

See circuit and how it works

8x8 LED Module
This module needs a microcontroller to deliver instructions to activate the display then data to show on the 8x8 matrix.
See xxx project for more information

Price $3.50
Free Shipping
This provider has a kit.
Some other providers sell the module already assembled for about 50 cents more with leads.

See circuit and how it works
8x8 Running Display project

5 Projects
5 different projects are built on the PC board including a fibre optic sign, a water alarm and 3 more.

Price $25.50 Free Shipping
Log in to your PayPal account and send a payment to:
talking@tpg.com.au for $25.50 AUD

See the full instructions, circuits and how it works

Capacitor Discharge Unit (CDU)
For those with a model railway, this is one of the first projects you will need to prevent point motors burning out.

Price $17.00 Free Shipping
Log in to your PayPal account and send a payment to:
talking@tpg.com.au for $17.00 AUD

See the full instructions, circuits and how it works

LED CRO
You can generate simple waveforms on the LED CRO display, very similar to a Cathode Ray Oscilloscope. You can whistle into a microphone and see a sinewave or connect it to one of the projects above and see the square-wave.

Price $20.00 plus $7.00 Shipping

See the video here

Metal Detector
Even though this circuit is the simplest you can get, it performs just like the $50.00 metal detectors because you use an ordinary AM radio to produce the tone. It will detect a small coin at 10cm.

Price $14.00 FREE Shipping

Log in to your PayPal account and send a payment to:
talking@tpg.com.au for $14.00 AUD

See full instructions, circuits and how it works

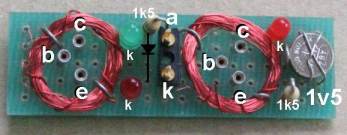

Transistor and LED Tester
This simple circuit will test NPN and PNP transistors as well as LEDs. It can be built with parts from your junkbox or bought as a complete kit.

Price $4.00 plus $3.00 Shipping

Log in to your PayPal account and send a payment to:
talking@tpg.com.au for $7.00 AUD

See full instructions

Square Wave Oscillator
A very handy piece of test equipment, producing a square-wave output from 1Hz to 100kHz in 6 ranges.

Price $8.20 plus $4.00 Shipping
Log in to your PayPal account and send a payment to:
talking@tpg.com.au for $12.20 AUD

See full instructions and circuit

LED Dice (PIC12F629 microcontroller)
A very handy project for any game requiring a DICE. Also teaches PIC programming.

Price $10.00 plus $6.50 Shipping
Log in to your PayPal account and send a payment to: talking@tpg.com.au for $16.50 AUD

See full instructions and circuit

ooo00000oooo

3-2-2014
